Profile Drawings for Safety Profile Knives
Profiles 30 to 59

These supporting drawings show the standard profile knives available for the safety profile cutter blocks listed on our product pages.

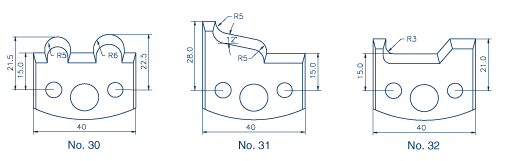

40 x 4.0mm Profile Nos. 30, 31 & 32

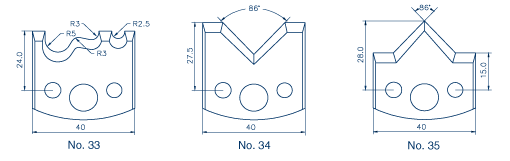

40 x 4.0mm Profile Nos. 33, 34 & 35

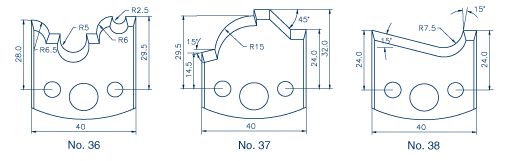

40 x 4.0mm Profile Nos. 36, 37 & 38

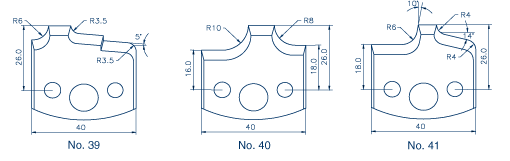

40 x 4.0mm Profile Nos. 39, 40 & 41

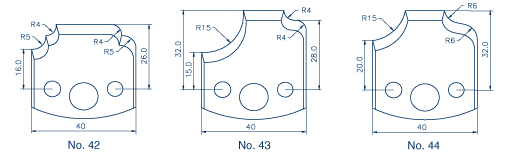

40 x 4.0mm Profile Nos. 42, 43 & 44

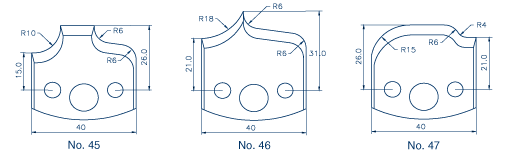

40 x 4.0mm Profile Nos. 45, 46 & 47

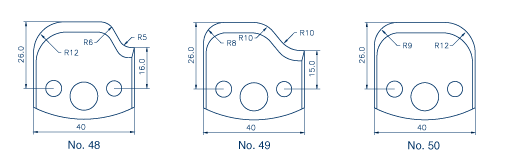

40 x 4.0mm Profile Nos. 48, 49 & 50

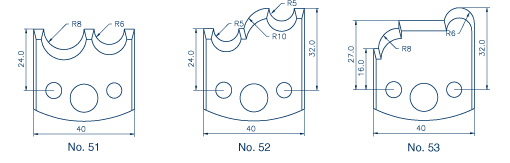

40 x 4.0mm Profile Nos. 51, 52 & 53

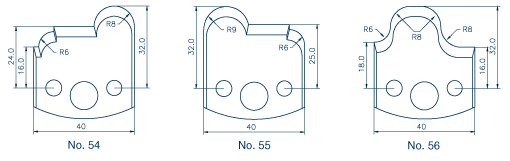

40 x 4.0mm Profile Nos. 54, 55 & 56

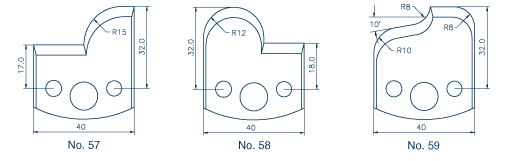

40 x 4.0mm Profile Nos. 57, 58 & 59
