Profile Drawings for Safety Profile Knives
Profiles 0 to 29

These supporting drawings show the standard profile knives available for the safety profile cutter blocks listed on our product pages.

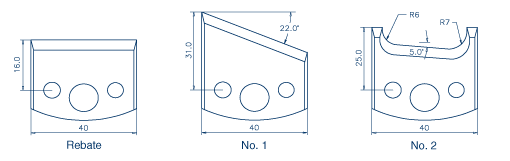

40 x 4.0mm Rebate Knife, Profile Nos. 1 & 2

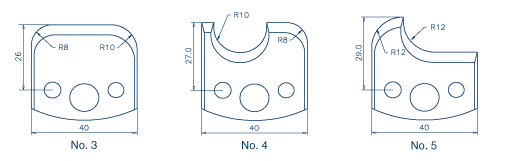

40 x 4.0mm Profile Nos. 3, 4 & 5

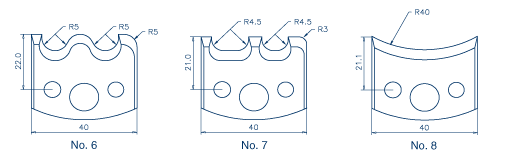

40 x 4.0mm Profile Nos. 6, 7 & 8

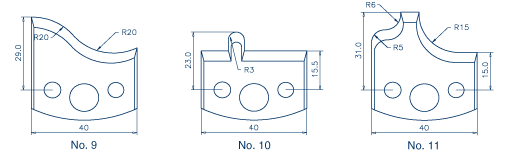

40 x 4.0mm Profile Nos. 9, 10 & 11

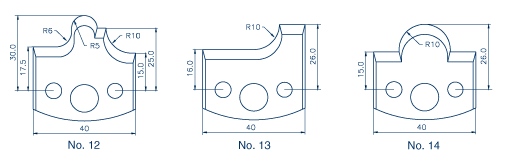

40 x 4.0mm Profile Nos. 12, 13 & 14

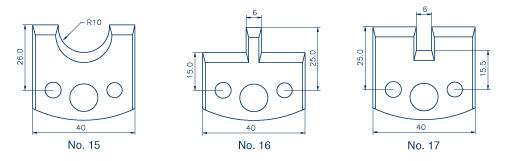

40 x 4.0mm Profile Nos. 15, 16 & 17

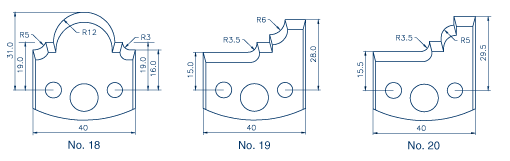

40 x 4.0mm Profile Nos. 18, 19 & 20

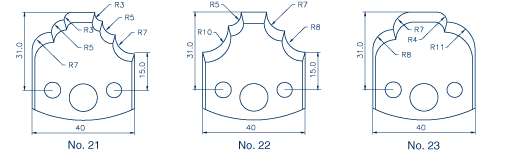

40 x 4.0mm Profile Nos. 21, 22 & 23

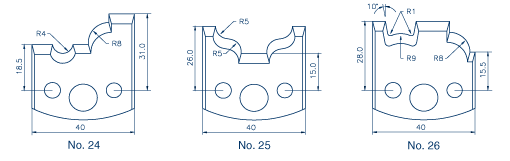

40 x 4.0mm Profile Nos. 24, 25 & 26

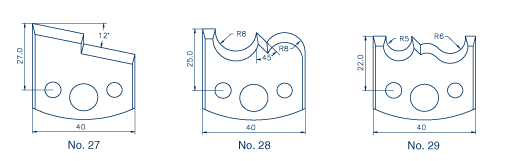

40 x 4.0mm Profile Nos. 27, 28 & 29
