Profile Drawings for Safety Profile Knives
Profiles 170 to 177

These supporting drawings show the standard profile knives available for the safety profile cutter blocks listed on our product pages.

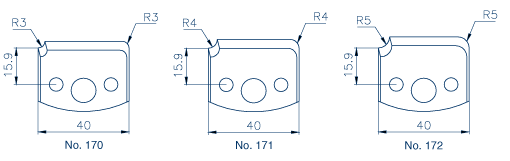

40 x 4.0mm Profile Nos. 170, 171 & 172

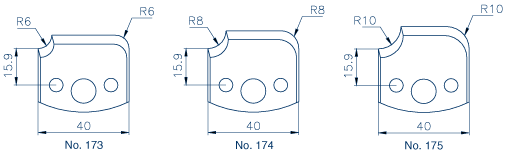

40 x 4.0mm Profile Nos. 173, 174 & 175

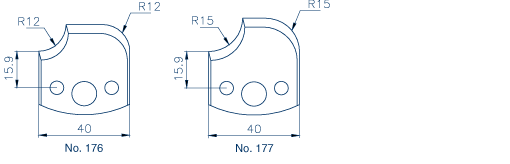

40 x 4.0mm Profile Nos. 176 & 177
